Configure Wifi & Bluetooth

Wi-Fi

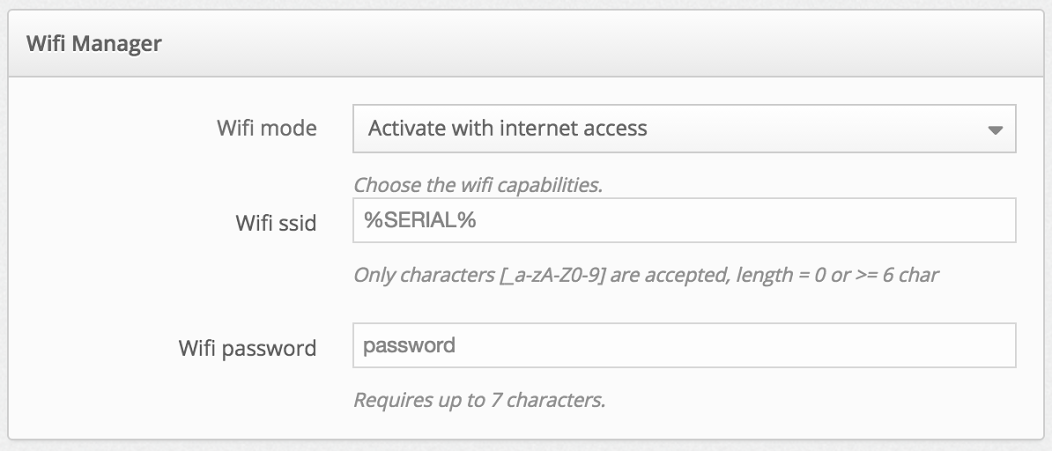

To configure the wifi option please go to https://dashboard.munic.io/configurations and select a "base configuration"

Options Description
Wifi mode allows you to configure the restrictions for WiFi usage.
Options are:
  1. De-activated (default value)
  2. Activated no internet access
  3. Activated with internet access
Wifi ssid allows you to change the wifi access point name, so far it is the "MUNIC_" followed by the serial number of the device.
Wifi password allows you to change the wifi access point password. Default value is "password"

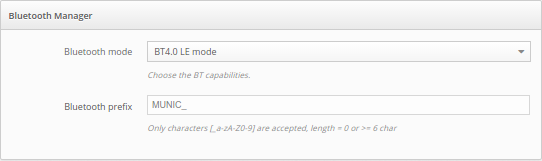

Bluetooth



Options Description
Bluetooth mode allows you choose the kind of Bluetooth capabilities.
Options are:
  1. De-activated
  2. BT4.0 LE mode only (default value)
Bluetooth prefix allows you customize the BT prefix name (we append at its end the SerialNumber of the device).
Default value "MUNIC_".

By default, device reports data every 10 seconds though Bluetooth Low Energy, you will be able to discover push services created by the dongle as well as its corresponding characteristic.
About the data the device will report, here are the BLE fields :

UUID KEY VALUE
0000ed20-0000-1000-8000-ff805f9b34fb loc longitude,latitude
0000ed18-0000-1000-8000-ff805f9b34fb obd_speed MDI_OBD_SPEED
0000ed0d-0000-1000-8000-ff805f9b34fb ignition MDI_DIO_IGNITION
0000ed15-0000-1000-8000-ff805f9b34fb obd_connected_protocol MDI_OBD_CONNECTED_PROTOCOL
0000ed22-0000-1000-8000-ff805f9b34fb behave_id BEHAVE_ID
0000ed17-0000-1000-8000-ff805f9b34fb obd_rpm MDI_OBD_RPM
0000ed23-0000-1000-8000-ff805f9b34fb ext_batt MDI_EXT_BATT_VOLTAGE
0000ed01-0000-1000-8000-ff805f9b34fb dashboard_mileage MDI_DASHBOARD_MILEAGE
0000ed24-0000-1000-8000-ff805f9b34fb dashboard_fuel MDI_DASHBOARD_FUEL
0000ed25-0000-1000-8000-ff805f9b34fb vehicle_state MDI_VEHICLE_STATE
0000ed26-0000-1000-8000-ff805f9b34fb obd_fuel MDI_OBD_FUEL
0000ed1d-0000-1000-8000-ff805f9b34fb obd_vin MDI_OBD_VIN

Munic.Box does not provide Bluetooth application, but Bluetooth has been tested by Munic.Box team using :

Platform Applications
Android Phones nRF Connect
iPhones LightBlue Explorer
MacBook LightBlue
